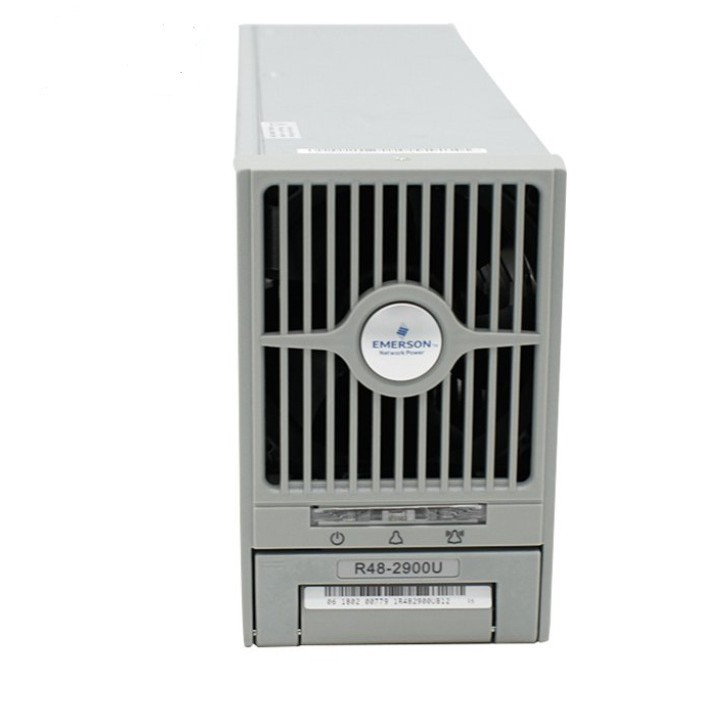

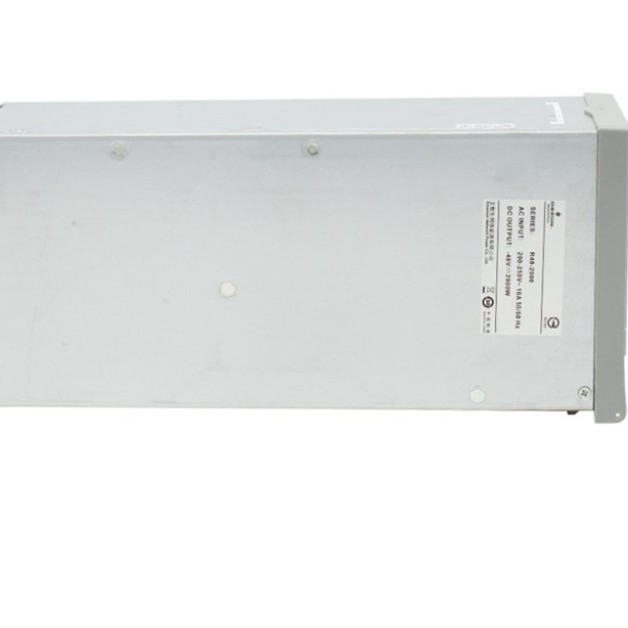

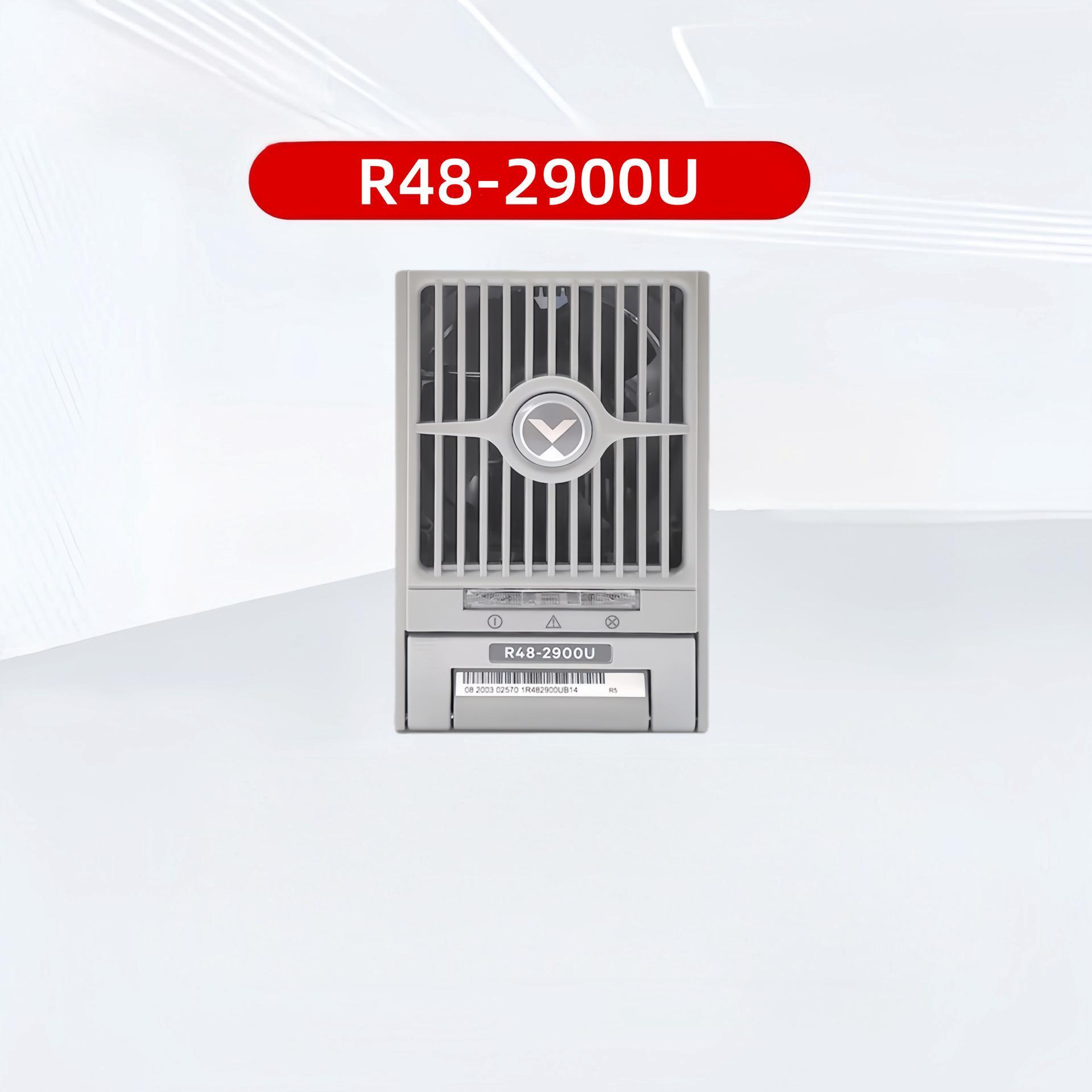

R48-2900U Communication Power Module 48V 50A Voltage 48V-58V 2900W

Brand Name : Emerson

Model Number : R48-2900U

Certification : CE UL

MOQ : 1

Price : 1 USD

Payment Terms : L/C,T/T,Western Union

Supply Ability : 1000 pcs per month

Delivery Time : 5-10 days

Packaging Details : cartons

Model NO. : R48-2900U

Output Type : Single

Output Power : >500W

Input Voltage : 220V

Connection Mode : Plug Into System

Modulation System : PWM

Output Voltage : 48VDC

Weight : 3.5kg

Contact Now

R48-2900U Communication Power Module 48V 50A Voltage 48V-58V 2900W

701 A30 system is optimized for base station power applications as well as other applications requiring up to 9.6kW of DC power. System configuration can be optimized to cost-effectively meet initial requirements, whilst allowing for easy expansion in the future. Standard and advanced controller options, configurable distribution and various capacity rectifier modules are available to suit different needs

Emerson R48-2900U Rectifier Features and Benefits:

1) Provides up to 9.6kW in one subrack
2) Front access and top cabling design for installation and maintenance
3) Utilizes UL approved rectifier R48-3200, R48-2900U, R48-2000
4) Hot swap of rectifier units
5) Configurable circuit breakers as high or low priority
6) AC input accepts three phase (220V delta connected or 380V star connected) or single phase (220V) nominal input
7) Battery and load low voltage disconnect to protect batteries (optional)


Specification

Model NO.

R48-2900U

Output Type

Single

Warranty

1 Year

Output Power

>500W

Input Voltage

220V

Connection Mode

Plug Into System

Starting Mode

Separate-excited Switching Power Supply

Voltage Regulating Mode

Switch Power Supply

Power Supplying System

Terminal Power Distribution Equipment

Energy Transmission

One-way Transmission

Modulation System

PWM

Certification

CE, UL, RoHS, FCC

Brand

Emerson

Output Voltage

48VDC

Output Voltage Range

-42 to -58 V DC

Output Current

60A

Output Power1

2900W

Trademark

Emerson

Transport Package

1PCS/Box

Specification

R48-2900U

Origin

China

HS Code

85044015

R48-2900U Weight

3.5kg

Dimensions

132 x 85 x 287mm
