Part No. : 241120.100
Model Name : Micropack 24/240W
Effciency : 93%
Input AC voltage : 86 - 280VAC
Input DC voltage : 86 - 280VDC
Output power : 250w
Output Current : 5 ADC
Output voltage : 43,5 - 57,6 VDC
Output max voltage : 57.6 Vdc
Warranty : 12 months

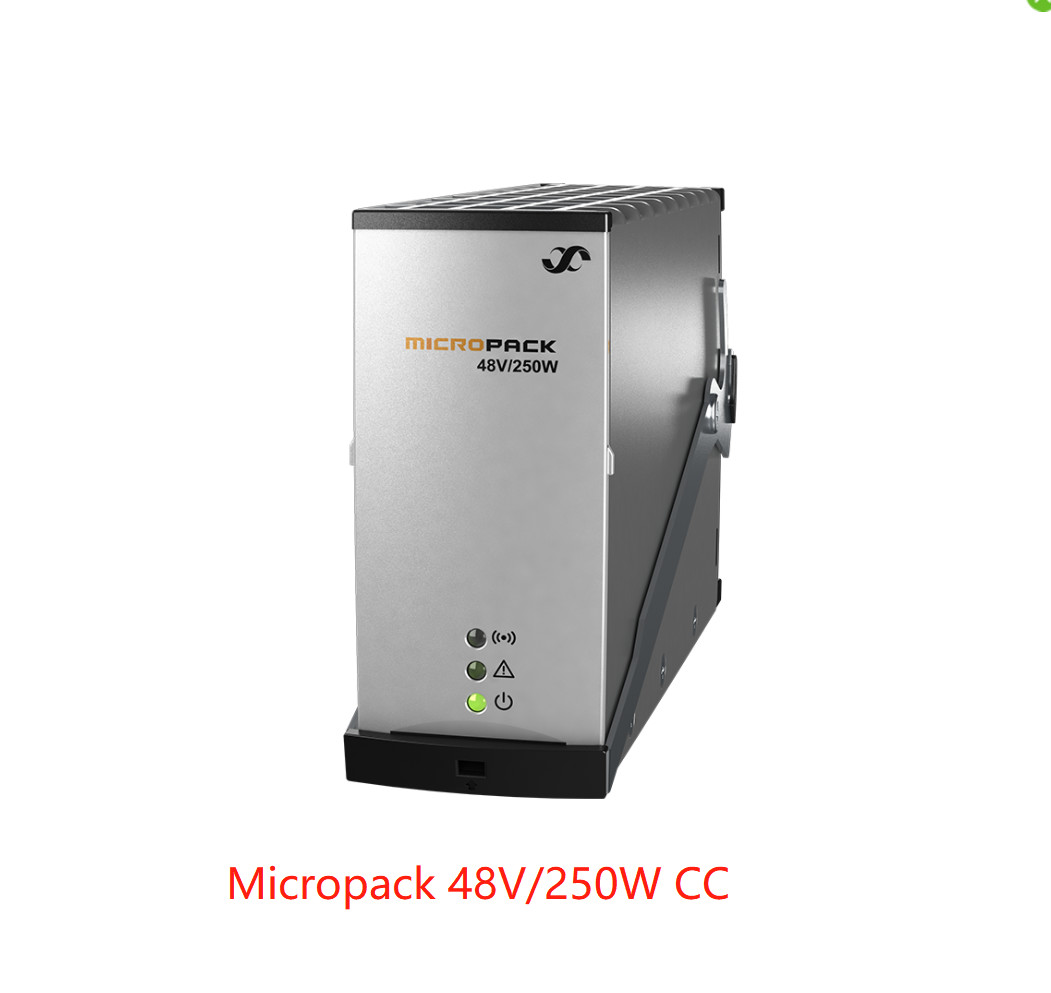

Eltek Micropack Rectifier Module 48V/250W (part No.: 241120.100)
Eltek Micropack Rectifier Module 48V/250W (part No.: 241120.100)
Compact, full-featured DIN rail power modules
The Micropack power system extends your network one step further. With load ranges typically between
120W and 1000W, and in 12, 24 and 48V options, the system is perfect for a great variety of applications.
Parameters :
Model | 12V / 120W | 24V / 240W | 48V / 250W |
Part number | 241120.300 | 241120.200 | 241120.100 |
INPUT DATA | |||
Voltage range | 85 - 300 V AC/ DC 1) | ||
Voltage range (nominal) | 130 - 275 V AC/ DC | 185 - 275 V AC/ DC 1) | |
Frequency | 0 - 66 Hz 1) | ||
Maximum current, 230V input / overall (boost) | 0.6 A / 2.0 A | 1.2 A / 2.0 A | 1.2 A / 1.9 A |
Maximum earth leakage current | 2.0 mA (@ 250V AC/ 50Hz) | ||
Power Factor | 0.97 (@ 70 - 100 % load) | 0.98 (@ 55 - 100 % load) | 0.98 (@ 50 - 100 % load) |
THD (@ 230 VAC) | < 5 % (@ 80 - 100 % load) | < 5 % (@ 50 - 100 % load) | < 5 % (@ 50 - 100 % load) |
Protection | Varistor for transient protection, fuse in both lines (2x 2.0 A), shutdown above 300 V AC/ DC | ||
OUTPUT DATA | |||
Default voltage | 13.6 V DC | 27.2 VDC | 53.5 VDC |
Voltage range | 10.7 - 18.0 V DC | 21.5 - 36 VDC | 43.5 - 57.6 V DC |
Voltage range without controller | 10.7 - 15.0 V DC | 21.5 - 30 VDC | 43.5 - 57.6 V DC |
# Pb cell supported (1.8 - 2.4 V DC/ cell) | 6 - 7 | 12 - 15 | 24 |
# NiCad cell supported (1.05 - 1.65 V DC/ cell) | 10 - 11 2) | 20 - 222) | - |
Max power, nominal / 60s boost | 120 W / 160 W | 240 W / 315 W | 250 W / - |
Max current, @12/ 24/ 48V DC / boost / QT 3) | 10 A / 15 A / 55 A | 10 A / 15 A / 55 A | 5 A / - / - |
Current sharing | ±5% of maximum current from 10 to 100% load | ||
Static voltage regulation ± | 0.5% from 10% to 100% load and nominal input | ||
Dynamic voltage regulation | ± 5 % < 10ms, load step 10% to 90% or opposite at nominal output voltage | ||
Hold-up time, default voltage and full power | 20 ms, V OUT > 10.7 VDC | 20 ms, VOUT > 21.5 VDC | 20 ms, VOUT > 43 VDC |
Rippel and noise, 30 MHz b.w. / psophometric | < 200 mV PP / 5 mV RMS | < 200 mV PP / 5 mV RMS | < 150 mV PP / 2 mV RMS |
Protection | Overvoltage shutdown, short circuit proof, high temperature, hot plug -in inrush current limiting, fuse | ||
OTHER SPECIFICATIONS | |||
Efficiency @ nominal input/ output, peak/ range | 89.5% / >88%, 50-100% load | 93.0% / >92%, 50-100% load | 93.6% / >93%, 50-100% load |
Isolation | 3.0 kVAC – input and output, 1.5 kV AC – input earth, 0.5 kV DC – output earth | ||
Alarms: Red LED 'on | Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure | ||
Warnings: Yellow LED 'on' | Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage | ||
Normal (module running): Green LED 'on' | |||
Alarm output (isolated) | NO (+positive terminal), COM (-negative terminal). 60 V / 100 mA max | ||
MTBF (Telcordia SR-332 Issue I method III (a)) | >480 000h (@T AMBIENT= 25°C) | >480 000h (@T AMBIENT= 25°C) | >500 000h (@T AMBIENT= 25°C) |
Operating temperature (5 - 95% RH non-cond.) Output power de-rates above temp / to | -40 to +70°C [ -40 — +158°F] +55°C / 50W @ +70°C | -40 to +60°C [-40 to +142°F] +45°C / 80W @ +60°C | -40 to +75°C [ -40 to +167°F] +55°C / 140W @ +75°C |
Storage temperature | -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing | ||
Dimensions[WxHxD] / Weight | 39.0 x 88.5 x 149mm [1.54 x 3.48 x 5.87"] / 0.5 kg [1.1 lbs] |
