Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3

Name: Vertiv Emerson Rectifier R483000 E3 Vertiv Power Rectifier R483000e3 48v 2000 W Rectifier R483000E3
Brand: Emerson
Price: 1 USD

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3 Manufactures

Brand Name : Emerson

Model Number : R48-3000E3

Certification : CE UL

MOQ : 1

Price : 1 USD

Payment Terms : L/C,T/T,Western Union

Supply Ability : 1000 pcs per month

Delivery Time : 5-10 days

Packaging Details : cartons

Model NO. : R48-3000E3

Usage : inverter/ convection

Output power : 3000w

Output Type : single dc

Input Voltage : 200-250v

Output Voltage : 48v, -42-58v dc

Output Frequency : 50/60hz

Weight : 4kg

Contact Now

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3

The 3000W high-efficiency eSureT rectifier (model R48-3000e3) is designed toconvert standard AC supply voltages into stable nominal -48V DC voltage that isadjustable to application needs. The R48-3000e3 is a constant power rectifier designedwith the latest patented switchmode technology, using DSP (Digital Signaling Processor)functionality for efficieny operation.
For a higher load capacity, rectifiers can be connected in parallel, and intelligent controlcan be added with the help of a separate controller.

Specification

AC INPUT
Input Voltage,Nominal	200 to 250 VAC
Input Voltage,Permitted Variation	85 to 300 VAC
Line Frequency	45 Hz to 65 Hz
Max Input Current	19A@176VAC
Power Factor	>0.99 for 50%-100%load
THD(Total Harmonic Distortion)	≤5%for 50%-100%load at 208Vac,220Vac

DC OUTPUT
Output Voltage,Adjustment Range	-42 VDC to-58 VDC
Output Power	3000W Maximum
Output Power,Derated for Input Voltage	See diagram
Output Current	62.5A@-48VDC
Output Current Limit Set Point	O to 62.5 A
Peak Efficiency	96%@290VAC input and 53.5V/34A output
Temperature Derating	Full output power up to+50℃ at input voltage range :176-264VAC

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3

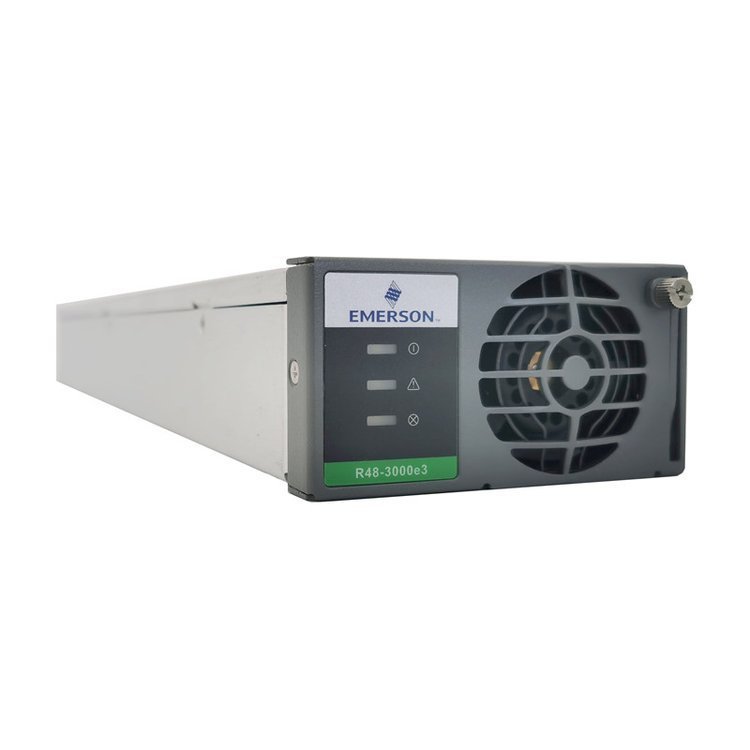

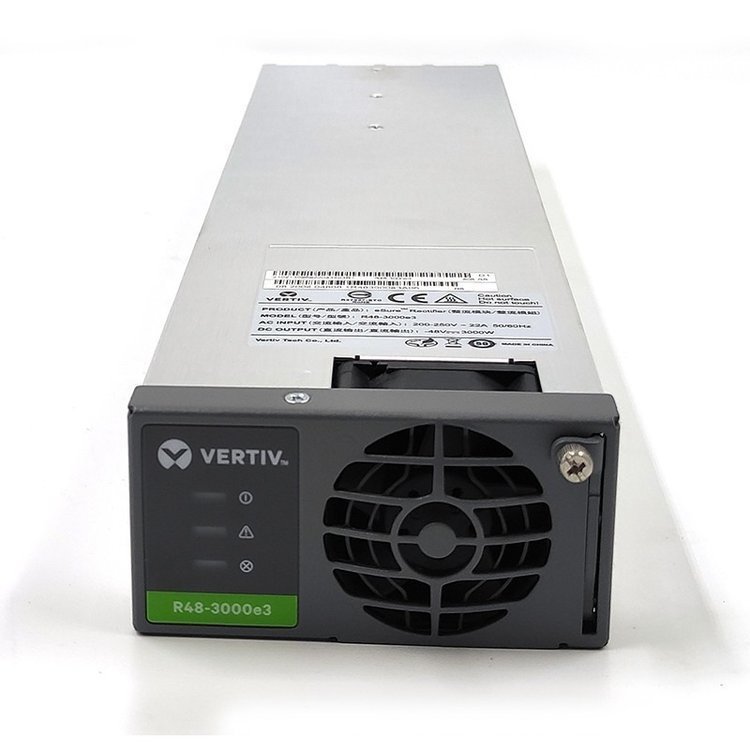

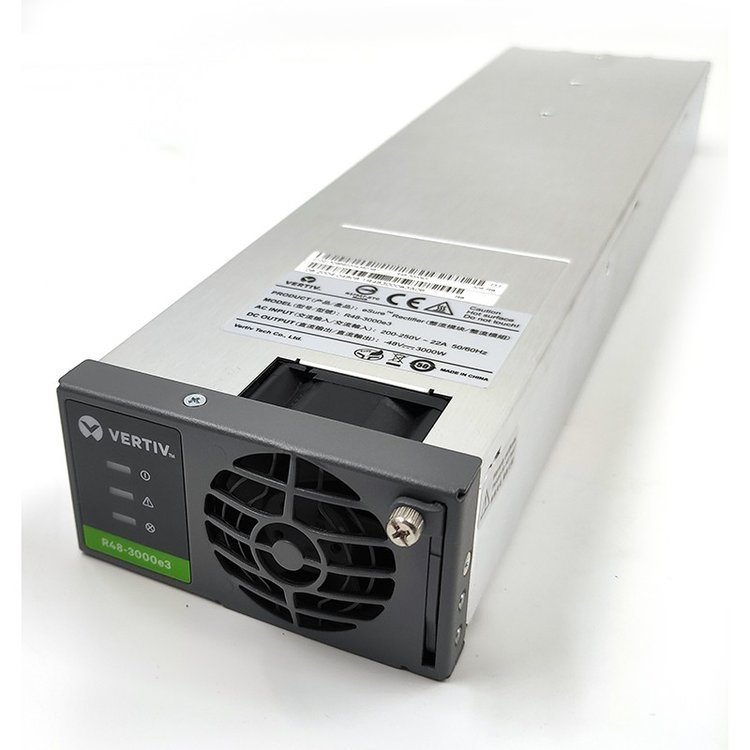

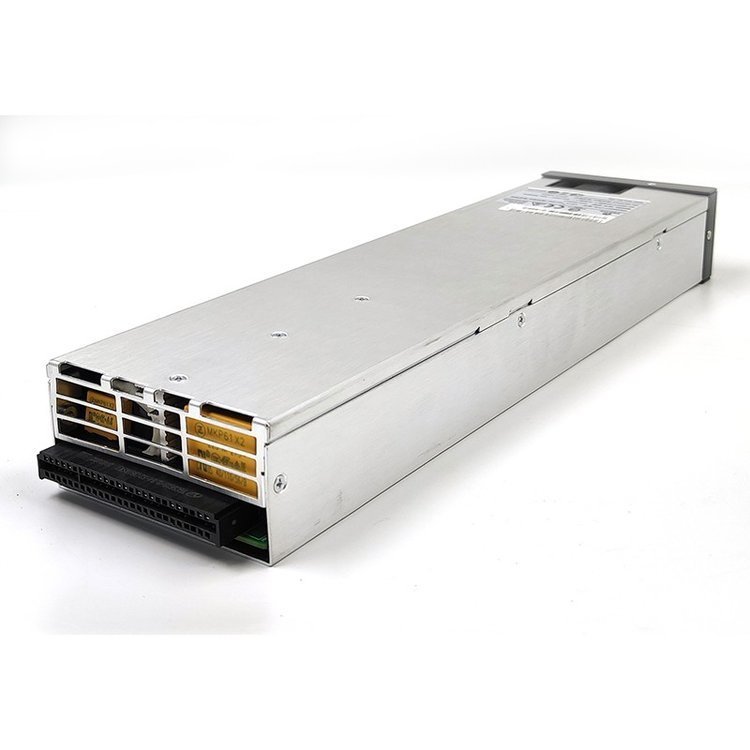

Vertiv Emerson Rectifier R48-3000 E3 Vertiv Power Rectifier R48-3000e3 48v 2000 W Rectifier R48-3000E3 Images
