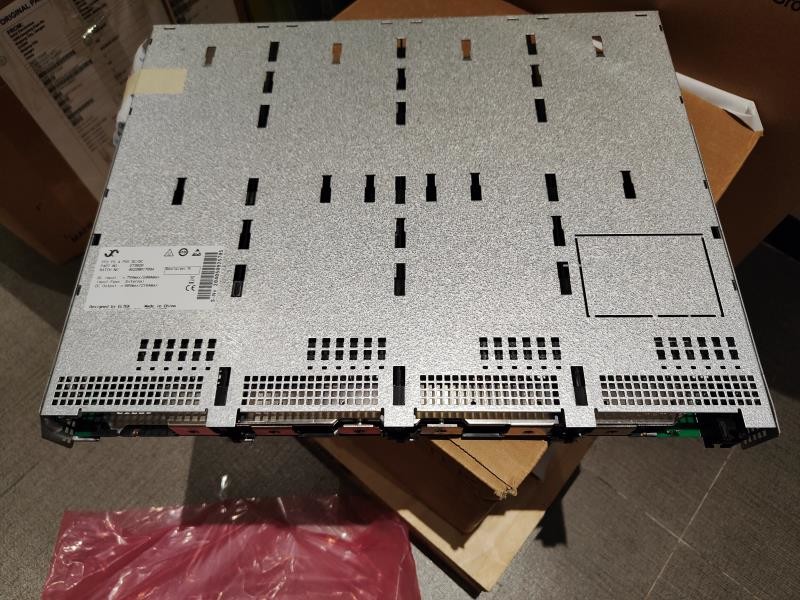

Eltek Flatpack S 1U Shelves With 5R/6R Rectifiers 241122.900 241122.901

Name: Eltek Flatpack S 1U Shelves With 5R6R Rectifiers 241122900 241122901
Brand: Eltek
Price: 1800 USD

Eltek Flatpack S 1U Shelves With 5R/6R Rectifiers 241122.900 241122.901 Manufactures

Brand Name : Eltek

Model Number : 241122.900 / 241122.901

Certification : CE, UL

Place of Origin : CN

MOQ : 1 set

Price : 1800 USD / 3500 USD

Payment Terms : L/C,T/T,MoneyGram,Western Union,D/P

Supply Ability : 500 sets per month

Delivery Time : 8-10 weeks

Packaging Details : Carton pacaked

Brand : OEM or eltek

Part No. : 241122.900

Product Name : Flatpack S 1U Shelves

Max input voltage : 305 VAC

Max input DC voltage : 400 VDC

DC output current : 225 ADC

DC output voltage : 60 VDC

DC output power : 10,8 kW

Operate temperature : -40 - 85 °C

Size : 448 x 44 x 270 mm

Weight : 2.6KG

Contact Now

Eltek Flatpack S 1U Shelves With 5R/6R Rectifiers 241122.900 241122.901

Eltek Flatpack S Power Shelves Power 1U 19inch 48V/24V with 5R/6R rectifiers (241122.900 /241122.901)

Flatpack S power shelves

The shelf can be used with all Flatpack S rectifiers and meets the markets demand for flexible and expandable power solutions.

The combination of power density, efficiency, and reliability makes the Flatpack S family a perfect choice for telecom and industrial applications.

Key features

l Compact HE power shelves

l Hot pluggable rectifiers

l FPS 24/1000 HE

l FPS 24/1000 HE SIL3

l FPS 48/1000 HE

l FPS 48/1800 HE

l 270 mm depth

l 1U height

Parameters :


	Model Flatpack S 1U/ C+5R Flatpack S 1U/ 6R
	Part number 241122.900 241122.901
	INPUT DATA
	Voltage (nominal)	185 - 305V AC/ DC
	Maximum current (per feed) 21Arms
	Mains configuration 3 x single phase
	Mains connection 6 x faston
	Frequency 45 – 66Hz
	OUTPUT DATA
	Maximum voltage	60VDC
	Maximum current 187,5Adc 225Adc
	Connection M6 insert nuts
	CONTROLLER
	Smartpack S1) External 2)
	MECHANICAL DATA
	Dimensions (W/ H/ D)	19” / 1U / 270mm (recommended minimum cabinet depth, 300mm)
	Weight (without rectifiers / controller) 2,8 Kg [6.17 lbs]
	OTHER SPECIFICATIONS
	Operating temperature 3) -40 to +85°C (-40 to +185°F)
	Coding Coding to prevent insertion of incorrect power modules
	Mounting Flush mount or mid mount
	DESIGN STANDARDS
	Electrical safety UL 60950-1 2ed, EN 60950-1 2ed
	EMC ETSI EN 300 386 V.1.6.1 EN 61000-6-1 (immunity, light industry) EN 61000-6-2 (immunity, industry) EN 61000-6-3 (emission, light industry) EN 61000-6-4 (emission, industry)
	Environment ETSI EN 300 019-2-1 Class 1.2 ETSI EN 300 019-2-2 Class 2.3 ETSI EN 300 019-2-3 Class 3.2
