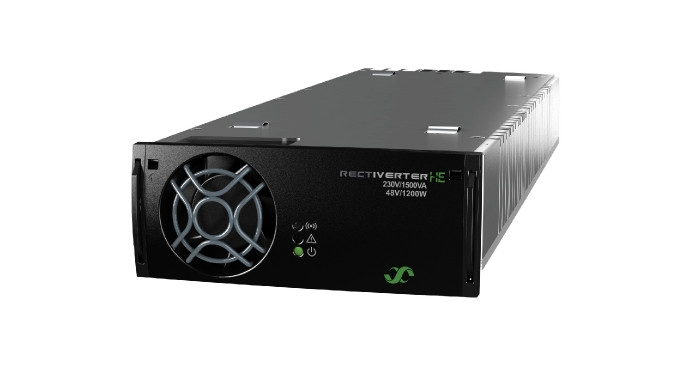

Eltek Rectiverter Indoor Scalable System 18-54 kVA, 110 VDC A+B input(CIEJ3643.4xxx )
Eltek Rectiverter Indoor Scalable System 18-54 kVA, 110 VDC A+B input(CIEJ3643.4xxx )
The scalable Rectiverter indoor system provides backup power for 400 VAC 3-phase or 230 VAC 1-phase loads, and 48 VDC power for DC loads and battery charging.
The scalable Rectiverter indoor system provides AC backup power for 400 VAC 3-phase or 230 VAC 1-phase loads, and 110 VDC power for battery charging and optional DC loads
In combination with the optional B-input (dual AC input) eliminates the need for a traditional ATS (Automatic Transfer Switch).Where the switch from A to B input, is a seamless operation with no interruption on the AC load.
When configured with dual AC input for use as an AC UPS, it classifies as - VFI SS 111 according to EN 62040-3
Key features
- 400 VAC 3 phase (Y) input
- 400 VAC 3 phase (Y) output
- 110VDC input/output
- Max 54 kVA / 43,2 kW AC output
- Max 43,2 kW DC output
- Protected bulk AC output
- A+B option (dual AC input)
- Manual bypass option
- Up to 4 battery strings
- Built in transfer technology
- 150% overload capability, 15S
- 600% quick trip current 20 ms
- Hot pluggable
- Smartpack2 controller
- Operates in paralell with Flatpack2 rectifiers
- Global compliance
- Patented HE technology
FRONT VIEW 54 KVA + 48 KW A-INPUT
|
| MODEL | 72 KW |
| Part number | CIEJ3643.xxxx |
| INPUT DATA |
| Voltage range AC (3 phase Y) | 320-475 V |
| Voltage range DC | 90-145 V |
| Maximum current AC (per phase) | 92-138 A |
| Frequency | 50 Hz / 60 Hz |
| Power factor | > 0.99 |
| OUTPUT DATA |
| Adjustable range AC (3 phase Y) | 346-415 V |
| Adjustable range DC | 97-145 V |
| Max output power AC | 54,0 kVA / 43,2 kW |
| Max output power DC | 43,2 kW |
| Admissible load power factor | 0 Ind. to 0 Cap. |
| Frequency | 50 Hz / 60 Hz |
| Battery breaker (2-pole) | 2*630 A |
| OPTIONS |
| B-Input (dual AC input) | 48 kW |
| Manual Bypass Switch | Internal |
|
Parameters :
|
| Models / ordering information | 54 kVA + 48 kW A-Input | 54 kVA + 48 kW B-Input |
| Product family |
| CIEJ3643.4xxx | CIEJ3643.4 xxx |
| AC OUTPUT DATA |
| Voltage (default) / (adjustable range)1) |
| 400 VAC 3 phase (Y) / 346-415 VAC |
| Frequency (default inverter mode) |
| 50 Hz (adaptive) |
| Frequency (set-able inverter mode) |
| 50Hz, 60Hz or last synced 50/60Hz (adaptive) |
| Power maximum (continuous / overload (<15s) ) |
| 43,2 kW (54 kVA) / 72 kVA |
| Current maximum/phase (continuous / overload (<15s) ) |
| 78ARMS / 104,4ARMS |
| Current (maximum) Quick trip/phase (20ms) |
| 380A (6 x nominal) |
| Hold up (Voltage dips) (before switching to battery) |
| > 5 ms @ 43,2 kW load |
| THD |
| < 1.5 % at resistive load |
| Output features | Module: Fuse in L and N , Hot pluggable 100 A MCCB, AC output individual screw terminals 70 mm2 for L1-L3, N & PE |
| DC OUTPUT DATA |
| Voltage (default) / (adjustable range) |
| 122,5 VDC / 97 - 145 VDC |
| Power (maximum @nominal input) |
| 43,2 kW 2) |
| Current (maximum @VOUT ≤ 48 VDC) |
| 400 A 2) |
| Hold up time, maximum output power |
| >10ms; VOUT > 97 VDC |
| Output features |
| Short circuit proof, Over voltage Shutdown Battery input /output connection to M10 bolt |
| INPUT DATA |
| AC Mains Input Voltage(3 phase Y) |
| 320-475 VAC, |
| AC Current/phase(at nominal output voltage) (depending on module type) | 92-138 ARMS 4) |
| Frequency (default: sync range) |
| 47-53 & 57-63 Hz |
| Frequency (set-able: sync range) |
| 47-53 Hz, 57-63 Hz or both (adaptive) |
| Power Factor / THD |
| > 0.99 at 50% load or more / < 3.5% |
| DC Voltage nominal / extended range (no overload)3) |
| 102 - 145 VDC / 90 - 145 VDC |
| DC Current (maximum) |
| 450 A / 648 A during overload (15s) |
| Input features | Module : Fuse in L and N, Hot pluggable, Varistor, Hot pluggable 160 A MCCB, AC input individual screw terminals 70 mm2 for L1-L3, N & PE |
| BATTERY & LOAD BREAKER |
| 2-pole battery breaker |
| 2*MCCB 630 A | 1*MCCB 880 A |
| 2-pole load breaker |
| - | 1*MCCB 630 A |
| OPTIONS |
| B-input maximum power (with FP2 HE, 2 kW rectifiers) |
| 48 kW |
| Manual Bypass switch |
| 2*160 A |
| OTHER SPECIFICATION |
| Efficiency | >96% (mains mode (AC/AC and AC/DC)), >94% (inverter mode (DC/AC)) |
| Protection Class | IP 20 |
|
|
| Operating temperature | -40 to +55°C (-40 to +131°F), humidity 5 - 95% RH non-condensing |
| Storage temperature | -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensions[WxDxH] / Weight | 600 x 600x 2000mm (23,7 x 23,7 x 78,8”) / 300 kg (1100 lbs) |
| DESIGN STANDARDS |
| Electrical safety | EN 60950-1, EN 62040-1 UPS safety |
|
| EMC | ETSI EN 300 386 V.1.6.1, FCC CFR 47 Part 15 EN 61000-6-1 /-2/-4/-5 |
|
|
Environment | ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) Normal operating conditions to be as per IEC/EN 62040-3:2011 clause 4.2 Other operating conditions as per IEC 62040-3:2011 clause 4.3, must be advised 2011/65/EU (RoHS) & 2012/19/EU (WEEE) |
| 1) Output voltage ranges configured in factory and have individual keying in top chassis 3) 90 - 102 VDC: reduced performance - no power boost and increased voltage THD on AC output. | 2) AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 28 ,8kW/260 A at full AC power and nominal input for 230VAC. 4) If DC voltage is pulled below 97 V the input current may increase above this level |

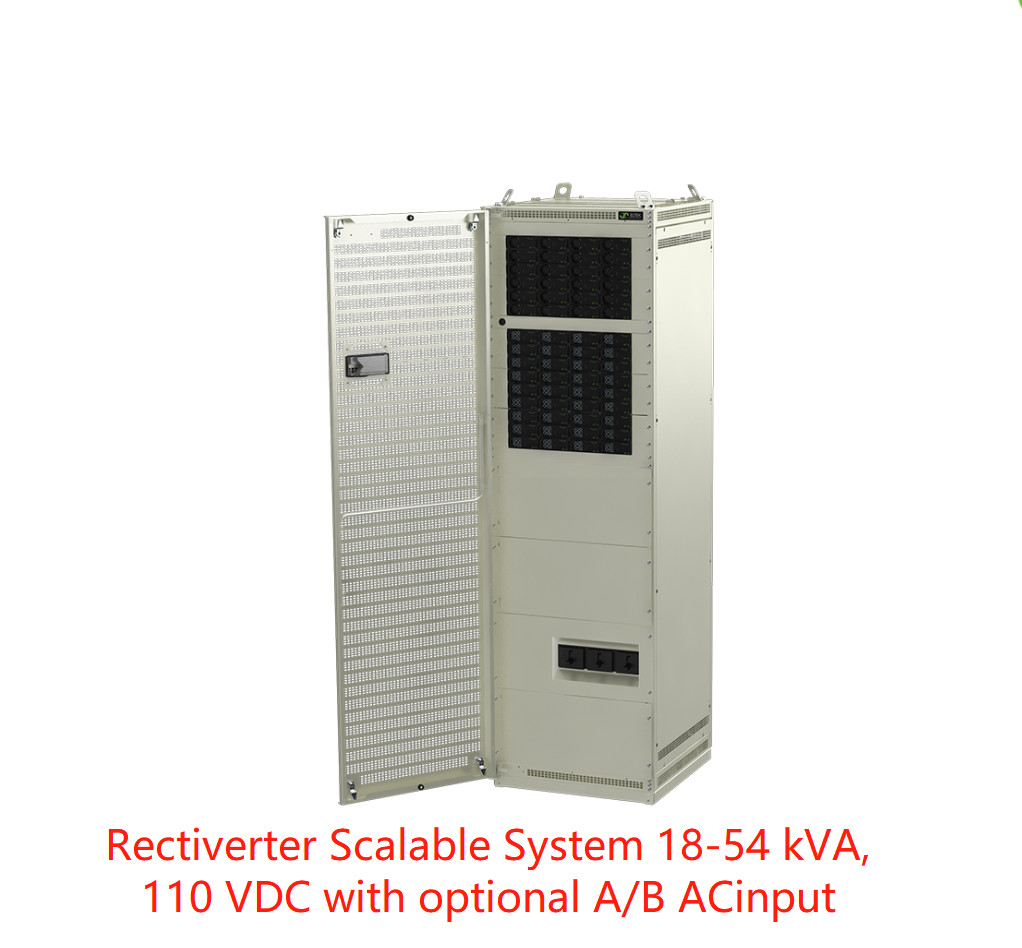

* The indoor Rectiverter Cabinet with AC &DC feed in one cabinet
