| Models / ordering information |
| 54 kVA + 72 kW B-Input |
| Product family |

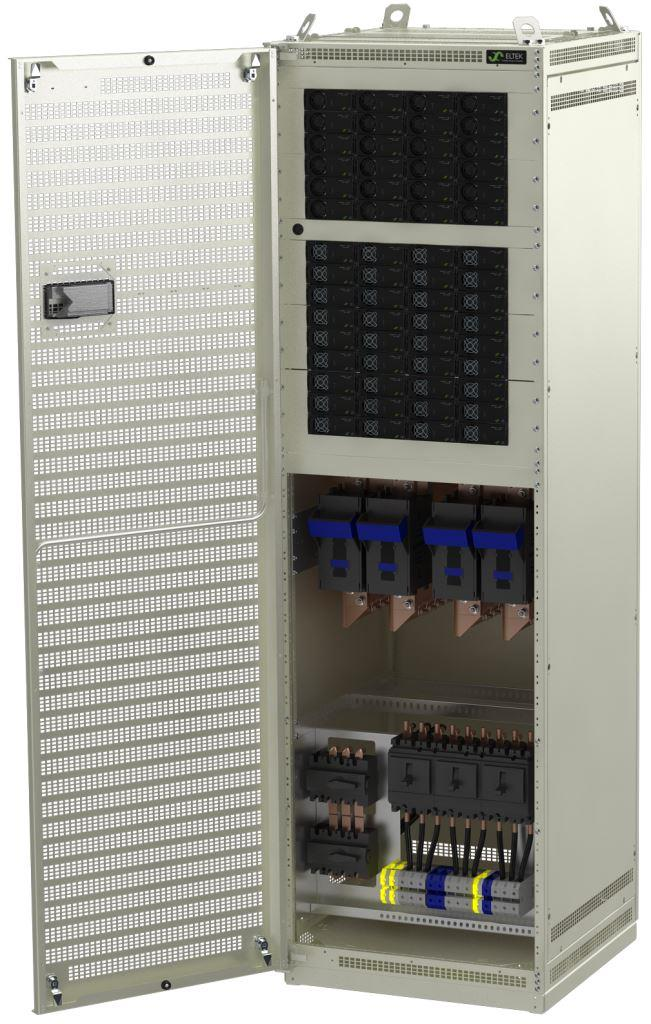

| CIEJ3642.xxxx |
|
| AC OUTPUT DATA |
| Voltage (default) / (adjustable range)1) |
| 400 VAC 3 phase (Y) / 346-415 VAC |
| Frequency (default inverter mode) |
| 50 Hz (adaptive) |
| Frequency (set-able inverter mode) |
| 50Hz, 60Hz or last synced 50/60Hz (adaptive) |
| Power maximum (continuous / overload (<15s) ) |
| 43,2 kW (54 kVA) / 72 kVA |
| Current maximum/phase (continuous / overload (<15s) ) |
| 78ARMS / 104,4ARMS |
| Current (maximum) Quick trip/phase (20ms) |
| 380A (6 x nominal) |
| Hold up (Voltage dips) (before switching to battery) |
| > 5 ms @ 43,2 kW load |
| THD |
| < 1.5 % at resistive load |
| Output features | Module: Fuse in L and N , Hot pluggable 100 A MCCB, AC output individual screw terminals 70 mm2 for L1-L3, N & PE |
| DC OUTPUT DATA |
| Voltage (default) / (adjustable range) |
| 53.5 VDC / 43 - 58 VDC |
| Power (maximum @nominal input) |
| 43,2 kW 2) |
| Current (maximum @VOUT ≤ 48 VDC) |
| 900 A 2) |
| Hold up time, maximum output power |
| >10ms; VOUT > 41 VDC |
| Output features |
| Short circuit proof, Over voltage Shutdown Battery input /output connection to M10 bolt |
| INPUT DATA |
| AC Mains Input Voltage(3 phase Y) |
| 320-475 VAC, |
| AC Current/phase(at nominal output voltage) (depending on module type) | 92-138 ARMS 4) |
| Frequency (default: sync range) |
| 47-53 & 57-63 Hz |
| Frequency (set-able: sync range) |
| 47-53 Hz, 57-63 Hz or both (adaptive) |
| Power Factor / THD |
| > 0.99 at 50% load or more / < 3.5% |
| DC Voltage nominal / extended range (no overload)3) |
| 45 - 58 VDC / 40 - 45 VDC |
| DC Current (maximum) |
| 1152 A / 1620 A during overload (15s) |
| Input features | Module : Fuse in L and N, Hot pluggable, Varistor, Hot pluggable 160 A MCCB, AC input individual screw terminals 70 mm2 for L1-L3, N & PE |

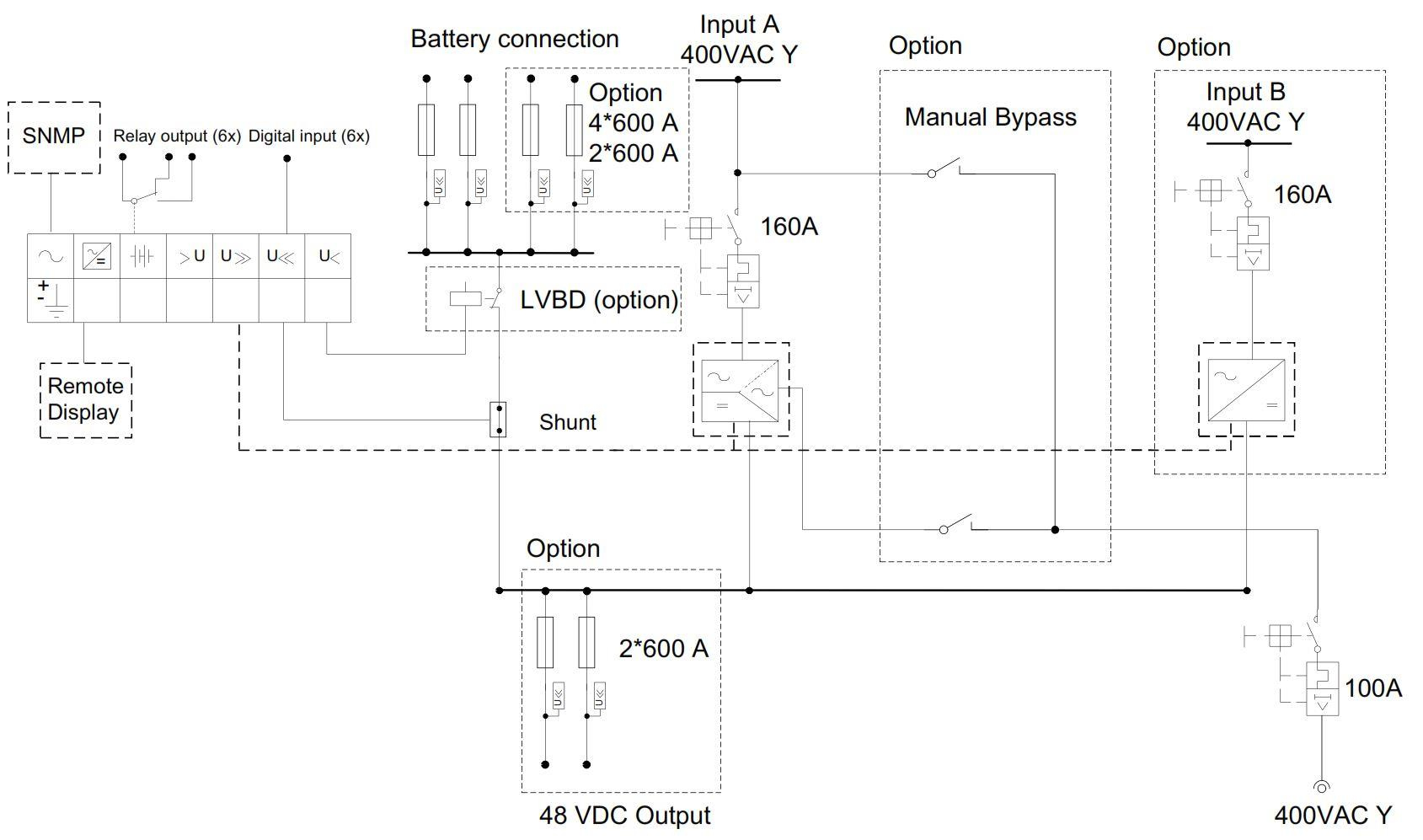

| DC LOAD AND BATTERY BREAKER OPTIONS | BATTERY BREAKER | DC LOAD BREAKER |

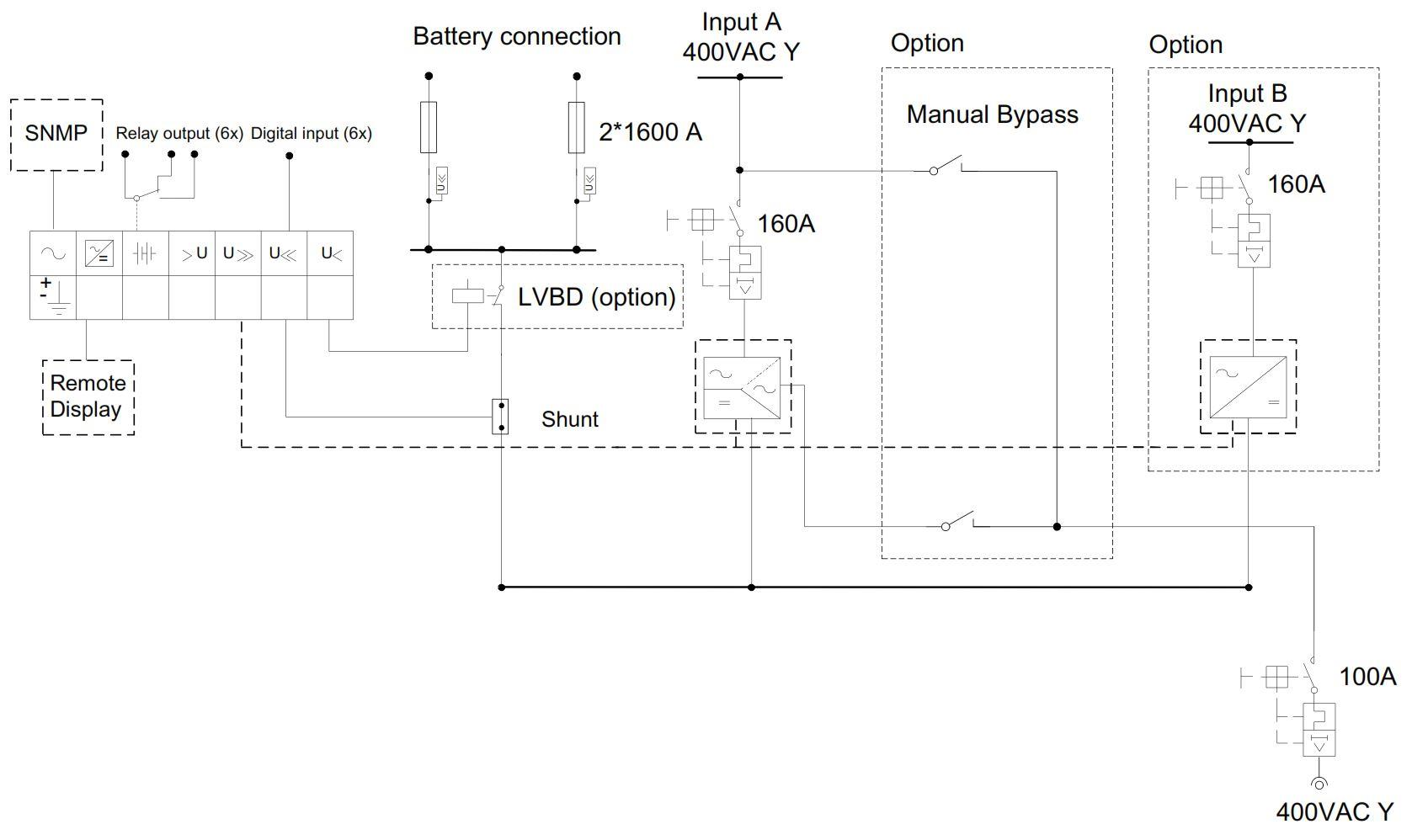

| Possible configurations (2 pole breaker) | 2*1600 A (4*TPS 2 holder 800-1600 A) | - |
| Possible configurations (2 pole breaker) | 4*600 A (8*TPS 00 holder 250-600 A) | - |
| Possible configurations (2 pole breaker) | 2*600 A (4*TPS 00 holder 250-600 A) | 2*600 A (4*TPS 00 holder 250-600 A) |
| OPTIONS |
| B-Input maximum power (with FP2 HE, 3 kW rectifiers) |
| 72 kW |
| Manual Bypass switch |
| 2*160 A |
| LVBD (1-pole) |
| 1800 A |
| OTHER SPECIFICATION |
| Efficiency | >96% (mains mode (AC/AC and AC/DC)), >94% (inverter mode (DC/AC)) |
| Protection Class | IP 20 |
|
|
| Operating temperature | -40 to +55°C (-40 to +131°F), humidity 5 - 95% RH non-condensing |
| Storage temperature | -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensions[WxDxH] / Weight | 600 x 600x 2000mm (23,7 x 23,7 x 78,8”) / 300 kg (1100 lbs) |
| DESIGN STANDARDS |
| Electrical safety | EN 60950-1, EN 62040-1 UPS safety |
|
| EMC | ETSI EN 300 386 V.1.6.1, FCC CFR 47 Part 15 EN 61000-6-1 /-2/-3/-4, EN 62040-2 |
|
|
Environment | ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) Normal operating conditions to be as per IEC/EN 62040-3:2011 clause 4.1 RoHS (2011/65/EU) and WEEE (2002/96/EC) compliant |
| 1) Output voltage ranges configured in factory and have individual keying in top chassis 3) 40 - 45 VDC: reduced performance - no power boost and increased voltage THD on AC output. | 2) AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 28 ,8kW/600 A at full AC power and nominal input for 230VAC. 4) If DC voltage is pulled below 43V the input current may increase above this level |
